Manufacturer of CNC machining centres

Twin-Spindle and Four-Spindle CNC Machining Centres

Attentive to the needs of users Sistech srl has developed and produced an innovative machine tool solution that will provide customers with a product having maximum operational flexibility and higher production capabilities.

“Quality and reliability" are the basis of this new concept.

The Twin spindle and Four-spindle series T.xx machining centres with revolutionary features are a real innovation in the industry.

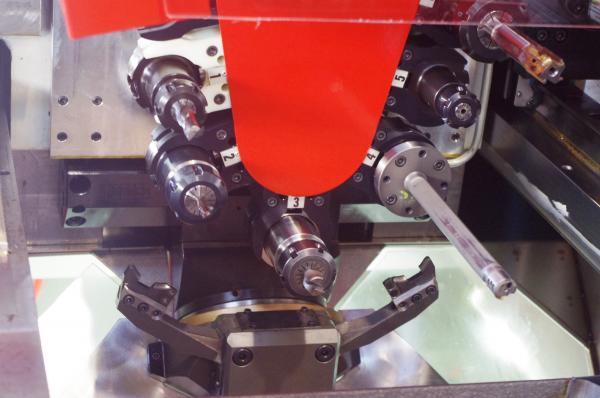

Drastic reduction of downtime, extremely quick tool change time, work axes with completely independent mechanics, are just some of the strong points of these machines.

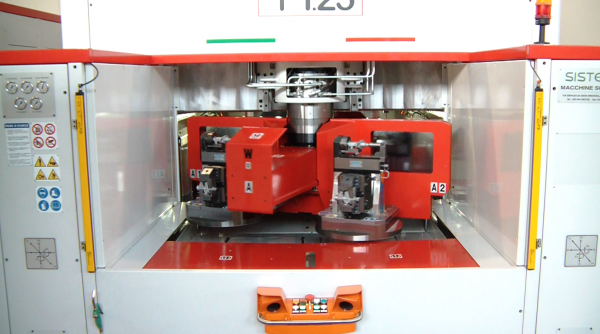

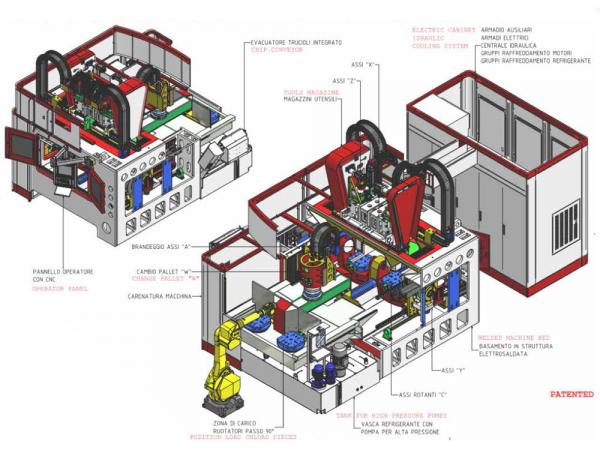

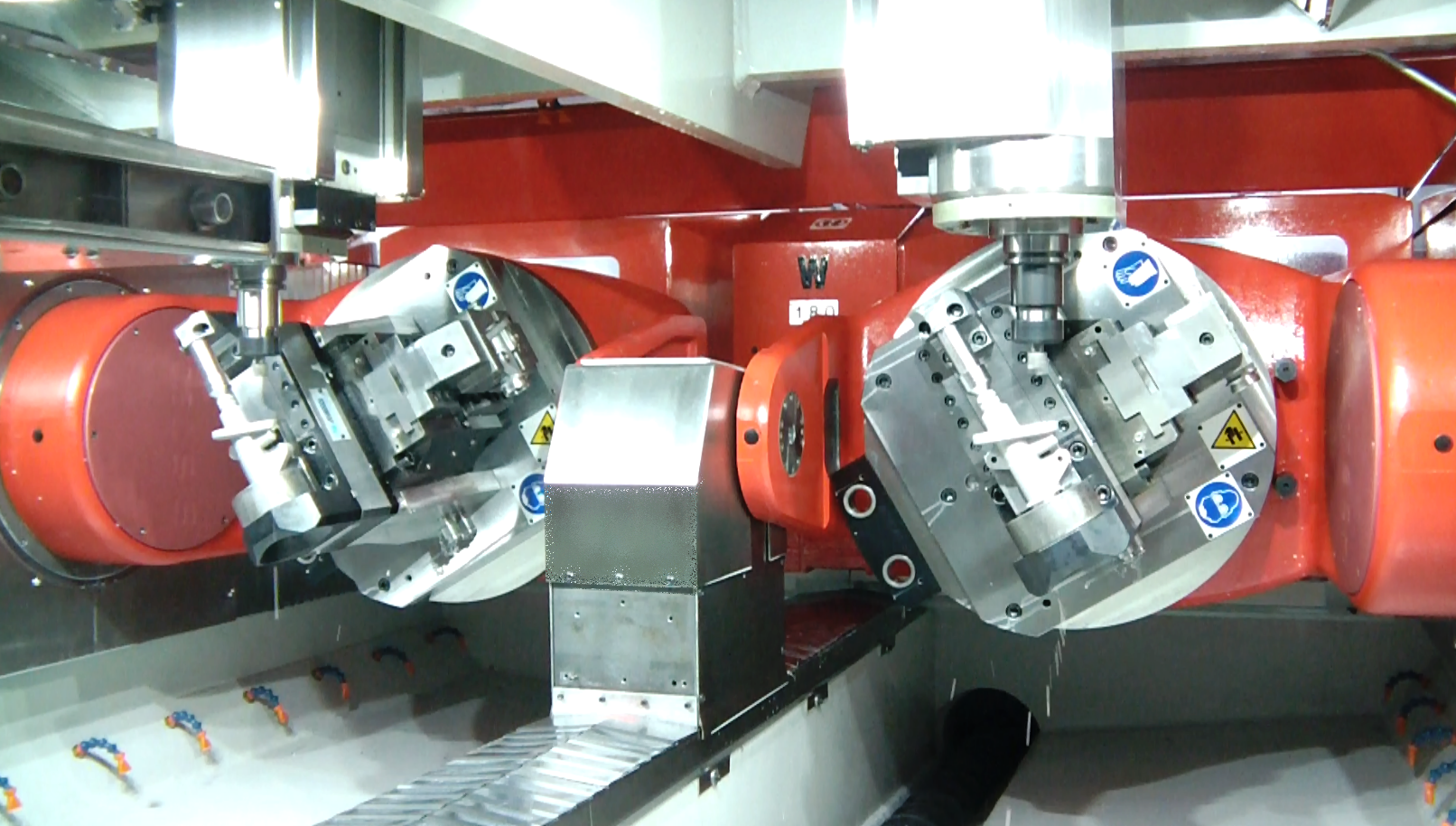

The T.xx series consists of CNC vertical machining centres, with a total of 23 controlled axes (4-spindle), 2 roto-tilting tables (A axis and C axis), that allow working two pieces simultaneously with a maximum permitted weight of 150 kg each. The pallet changer located on the front of the machine allows to load/unload the workpieces in hidden time.

The main technical data for each of the machines is detailed in the downloadable brochure.

Patent n° 2431126
