Thread Rolling Machine

Thread Rolling Machine Request information


This type of machines has been designed and developed to perform deformation and stretching operations.

These machines can perform the following operations:
  - Beading
  - End sizing and expanding
  - Grooves, channels and round profiles
  - Cylindrical threads
  - End trimming

Machinable Materials and Dimensions:
  - Aluminium, copper, stainless steel pipes, other materials on request
  - Minimum internal pipe diameter = 60 mm
  - Maximum internal pipe diameter = 250 mm
  - Minimum thickness = 0.25 mm (depends on the material)
  - Maximum thickness = 3 mm (depends on the material)
  - Minimum pipe length = 150 mm
  - Maximum pipe length = 2500 mm (longer pipes on request)

These machines can be supplied in special versions, with a multi-station rotary table and with the possibility of carrying out different types of machining in sequence.

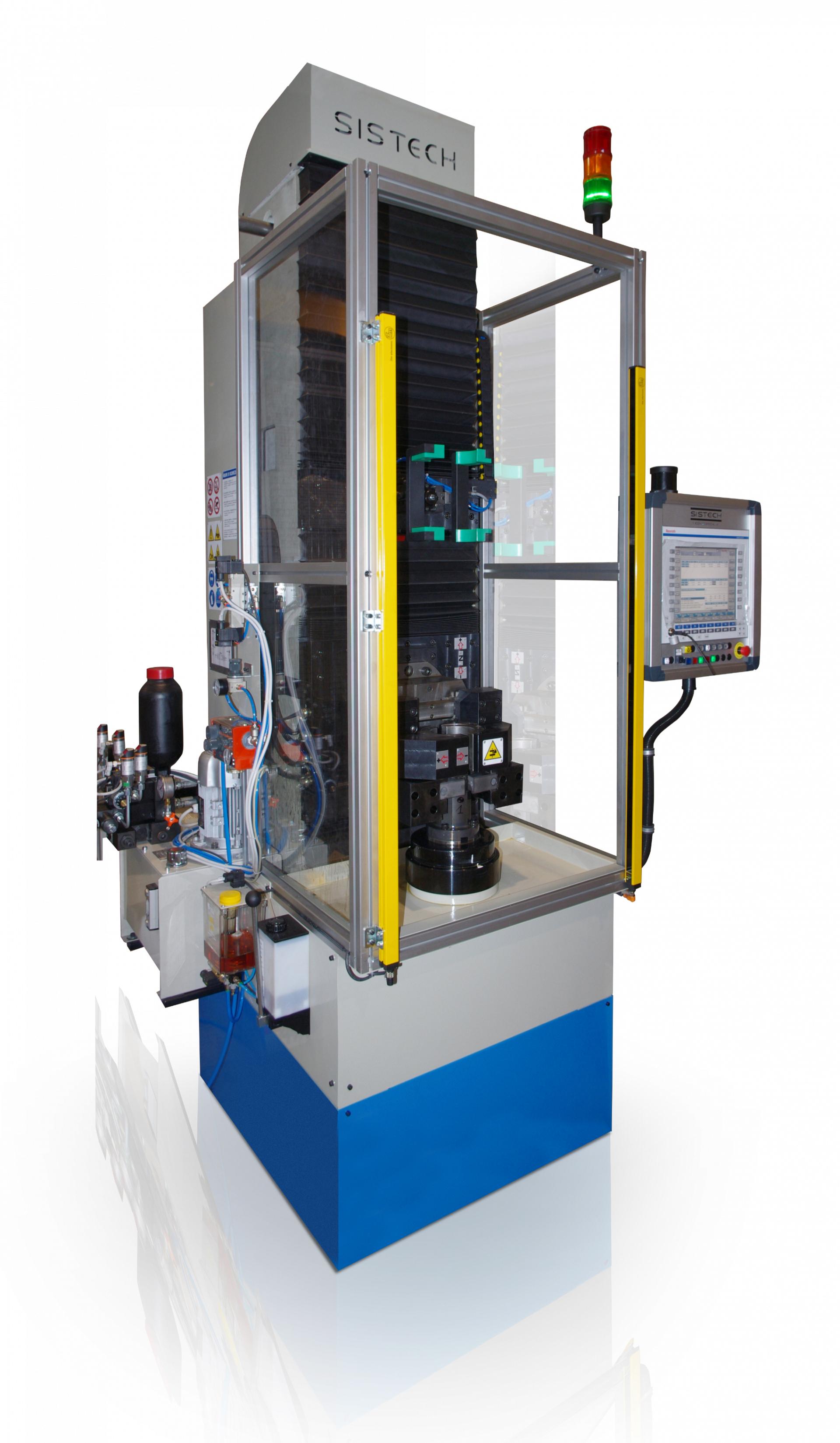

THREAD ROLLING MACHINE

THREAD ROLLING MACHINE

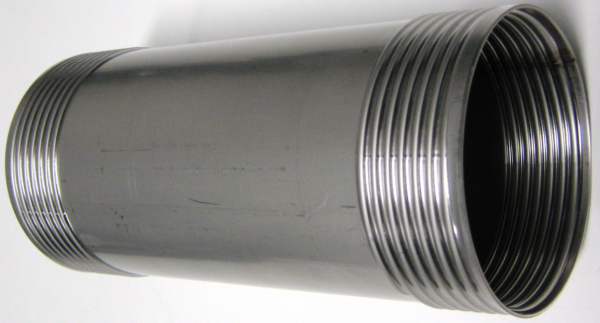

WORKED PIECE

WORKED PIECE
